Technical data
| Height | h 99 H 125 mm |
| Top plate dimensions | 64 x 92 mm |
| Top plate hole diameter | 8 mm |
| Dist. between holes | 45 x 71,78 mm |
| Weight | 1.23 kg |
Technical description

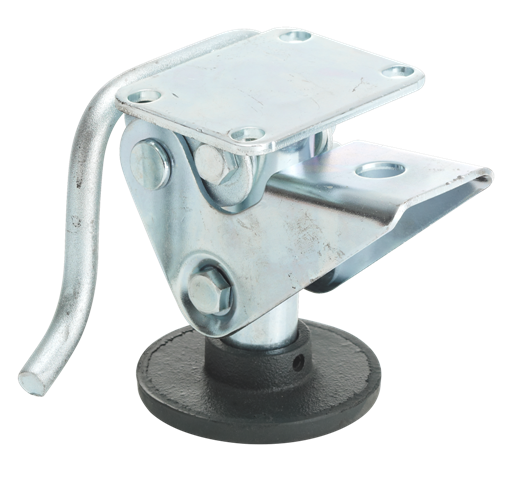

- Zinc-coated top fitting floor lock,
- designed to bolt on the underside of
- a trolley at an overall height = H + 2
- to 6 mm above the ground surface
Variants
|
Height |
Top plate dimensions |
Top plate hole diameter |
Dist. between holes |
Weight |
| TLUS 2 |
h 114 H 140 mm |
64 x 92 mm |
8 mm |
45 x 71,78 mm |
1.26 g |
| TLUS 3 |
h 131 H 159 mm |
64 x 92 mm |
8 mm |
45 x 71,78 mm |
1.27 g |
| TLUS 1 |
h 99 H 125 mm |
64 x 92 mm |
8 mm |
45 x 71,78 mm |
1.23 g |
