Apparatus Castors

Whether in the small neighbourhood bistro, the hotel or the large canteen, the demands on people and equipment have grown. So it is important that the work can be handled with ease, for satisfied guests and contented workers.

It is a good thing the solid and robust castors from Colson also play their part with ease, because cooking equipment, food dispensers and other appliances have been mounted on them for years. Colson serves them fresh from the factory.

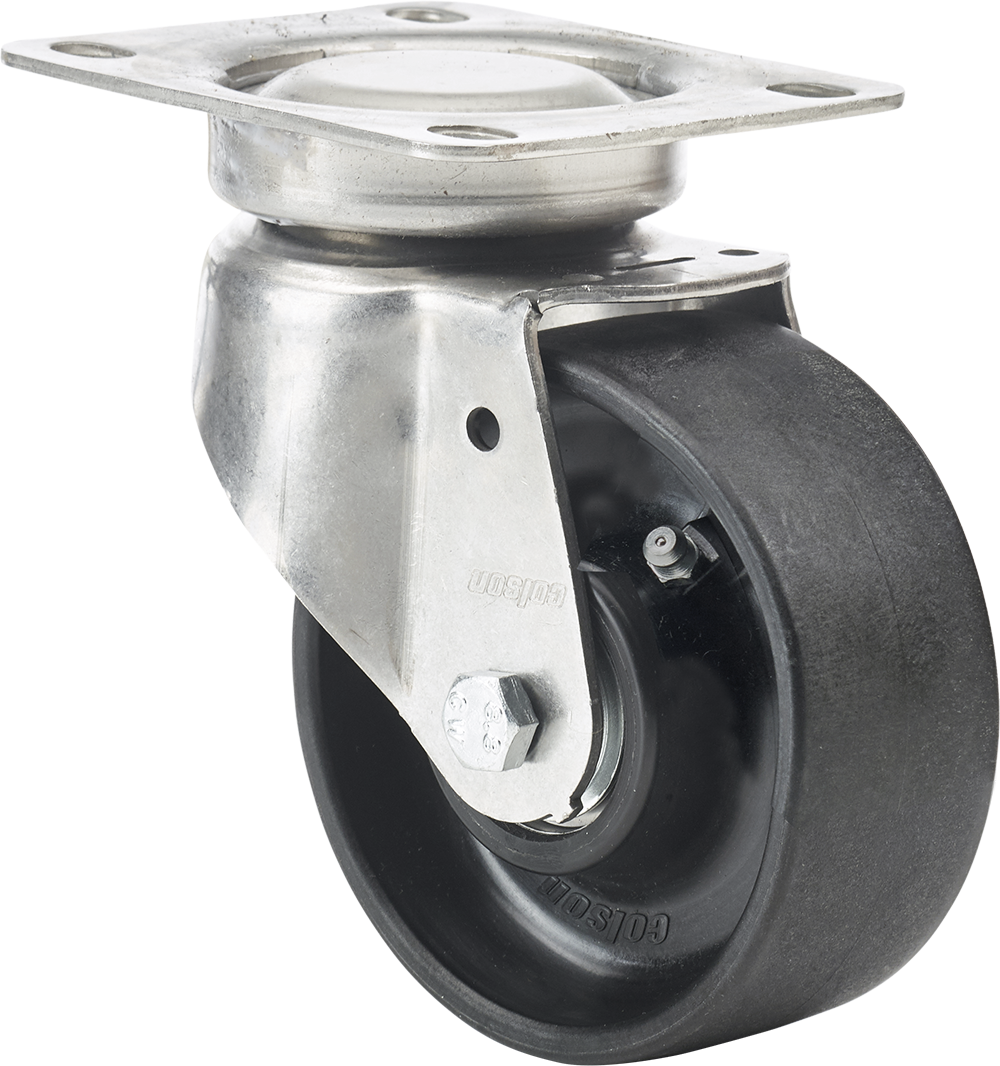

JSHN 1002 6152/HN
JSHN 1002 6152/HN


70 mm - 100 mm, 160 kg - 240 kg

Technical data

Diameter 100 mm
Wheel width 40 mm
Hub length 45 mm
Height 130 mm
Offset 40 mm
Wheel axle diameter 15 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9 mm
Dist. between holes 80 x 60 mm
Load capacity 240 kg
Weight 0.94 kg
Reach compliant Rohs compliant

Wheel

  • Varmo a high wear resistant synthetic material High resistance to moisture and water Sound reducing properties and grease nipple Temperature resistance -40 °C to + 300 °C with two deep groove ball bearings

Technical description

  • Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision ball bearing and a grease nippel
