Furniture Castors
Moveable small and large furniture ensures flexibility and creates room for change. With furniture castors from Colson , sofabeds, audio furniture, tables, cupboards and many other furnishings can be ideally positioned, but still remain mobile.
No matter what the floor requirements, Colson has the right solution on hand, and that is in classic Colson quality, with all the characteristics to be expected of a furniture castor.
119 050 R (119 050 R)
On request
119 05050 mm, 50 kg
Technical data
| Diameter | 50 mm |
| Height | 110,3 mm |
| Load capacity | 50 kg |
| Weight | 207 g |
Technical description
- ball-swivel castor
- steel wire construction with black rubber spherical wheel (Shore A 70)
- threaded pin M 14x1,5x44 mm, 2 nuts, rubber sealing ring
- measurement top edge ball bearing upper nut 65 mm
Areas of application
- belt grinding machines
- glass cutting tables
156a 00G016g ZPS
On request
156a 00G016g ZPS 16 mm, 20 kg
Technical data
| Diameter | 16 mm |
| Tread width | 19 mm |
| Height | 19,5 mm |
| Top plate dimensions | 42x23 mm |
| Top plate hole diameter | 4,3 mm |
| Dist. between holes | 28,5 mm |
| Load capacity | 20 kg |
| Weight | 22 g |
Wheel
- polyamide grey
- plain bearing
Technical description
- sheet steel housing
- zinc passivated
Areas of application
- drawers
- small furniture
- sofa beds
164a 00G016g ZPS
On request
164a 00G016g ZPS 16 mm, 20 kg
Technical data
| Diameter | 16 mm |
| Tread width | 19 mm |
| Height | 20 mm |
| Top plate dimensions | 42x23 mm |
| Top plate hole diameter | 4,3 mm |
| Dist. between holes | 20 mm |
| Load capacity | 20 kg |
| Weight | 30 g |
Wheel
- polyamide grey
- plain bearing
Technical description
- sheet steel housing
- zinc passivated
Areas of application
- drawers
- small furniture
- sofa beds
176a 33C050b ZPS
176a 33C050b ZPS 50 mm, 40 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Height | 155 mm |
| Top plate dimensions | 60x50 mm |
| Top plate hole diameter | 5,5 mm |
| Dist. between holes | 22,5x38,8 mm |
| Load capacity | 40 kg |
| Weight | 286 g |
Technical description
- metal housing
- zinc passivated
- with load related locking effect
- screw-on plate can be removed
- turned through 90°
- total spring distance max. 22 mm,
- total spring pressure 17 kg
Areas of application
- ladders
177a 33C050b ZPS
177a 33C050b ZPS 50 mm, 40 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Height | 155 mm |
| Offset | 24 mm |
| Top plate dimensions | 60x50 mm |
| Top plate hole diameter | 5,5 mm |
| Dist. between holes | 22,5x38,8 mm |
| Load capacity | 40 kg |
| Weight | 374 g |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- plastic wheel centre grey
- metal thread guard zinc-passivated (from Ø 75 mm)
- flange bearing
- Attention: wheel in Ø 50 mm riveted!
Technical description
- metal housing
- zinc passivated
- with load related locking effect
- screw-on plate can be removed
- turned through 90°
- total spring distance max. 22 mm,
- total spring pressure 17 kg
Areas of application
- ladders
197B
On request
197B 0 mm, 280 kg
Technical data
| Height | 19,5 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 6,5 mm |
| Dist. between holes | 75x45 mm |
| Load capacity | 280 kg |
| Weight | 324 g |
Technical description
- double plate ball bearing
- single-row ball race
- zinc-passivated
Areas of application
- turntables
- game tables
197D
On request
197D 0 mm, 50 kg
Technical data
| Height | 10,5 mm |
| Top plate dimensions | 57x57 mm |
| Top plate hole diameter | 10,5 mm |
| Dist. between holes | 43x43 mm |
| Load capacity | 50 kg |
Technical description
- double plate ball bearing
- single-row ball race
- zinc-passivated
Areas of application
- turntables
- game tables
198ZPI - 115X85
198ZPI 0 mm, 250 kg - 600 kg
Technical data
| Height | 19 mm |
| Top plate dimensions | 115x85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x55/60 mm |
| Load capacity | 250 kg |
| Weight | 544 g |
Technical description
- double ball race in closed special head
- zinc passivated
Areas of application
- turntables
- game tables

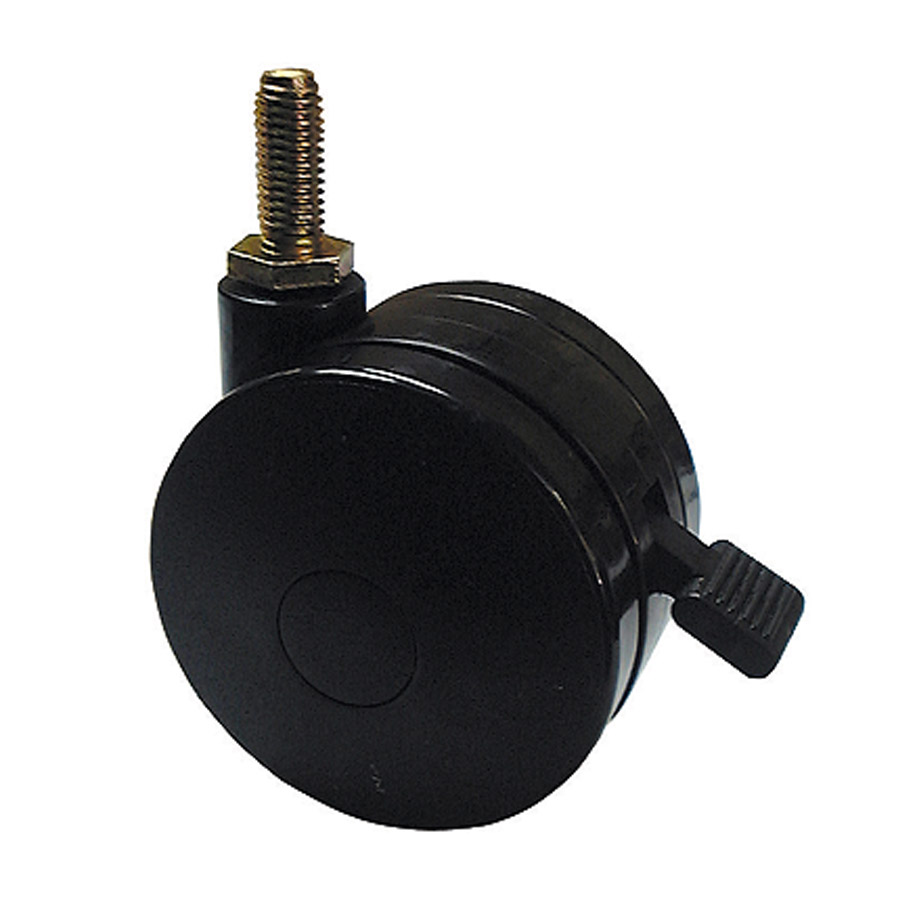

287a 00G050x KGB1
On request
287a 00G050x KGB1 50 mm - 125 mm, 40 kg - 80 kg
Technical data
| Diameter | 50 mm |
| Tread width | 2x11 mm |
| Height | 56 mm |
| Offset | 17 mm |
| Threaded stem size | M08x15 mm |
| Load capacity | 40 kg |
Wheel
- polyamide black
- plain bearing
Technical description
- housing and wheel made of polyamide (PA)
- attachments zinc-plated
- hard running surface (for soft floors)
Areas of application
- audio furniture
- bedside cabinets
- display stands
- occasional tables
- serving trolleys
- small furniture
