118a 820 799
76 mm, 50 kg
Technical data
| Diameter | 76 mm |
| Tread width | 25 mm |
| Height | 104,4 mm |
| Top plate dimensions | 81,4 x 65,3 mm |
| Top plate hole diameter | 5,2 mm |
| Dist. between holes | 34 x 50 + 40,71 x 40,71 mm |
| Load capacity | 50 kg |
| Weight | 430 g |
Wheel
- TPR wheel (Shore A 80)
Technical description
- case corner castor with die cast aluminium body.
403a 29K100y K00-2
403a29K100yK00-1 100 mm, 250 kg
Technical data
| Diameter | 100 mm |
| Tread width | 2x30 mm |
| Height | 123,5 mm |
| Offset | 30 mm |
| Stem size | 32 mm |
| Brake swivel radius | 95 mm |
| Load capacity | 250 kg |
Wheel
- TPU-wheels (Shore A 95)
- electrically conductive
Technical description
- Plunger lock castor series 403
- Plastic twin wheel castor
- Precision ball bearings in swivel section and wheel
Areas of application
- Medical equipment, for example OP-tables
FLPL 3.00-4
FLPL 3.00-4 260 mm, 170 kg
Technical data
| Diameter | 260 mm |
| Wheel width | 85 mm |
| Hub length | 75 mm |
| Height | 307 mm |
| Top plate dimensions | 175 x 175 mm |
| Top plate hole diameter | 14.5 mm |
| Dist. between holes | 140 x 140 mm |
| Load capacity | 170 kg |
| Weight | 3.75 kg |
Wheel
- Pneumatic wheel with a red plastic core
- black tyre
JA8SUB
JA8SUB
Technical data
| Diameter | 200 mm |
| Wheel width | 51 mm |
| Height | 266/342 mm |
| Offset | 57 mm |
| Top plate dimensions | 152x106 mm |
| Top plate hole diameter | 12 mm |
| Dist. between holes | 114,3x63,5 mm |
| Load capacity | 1045 kg |

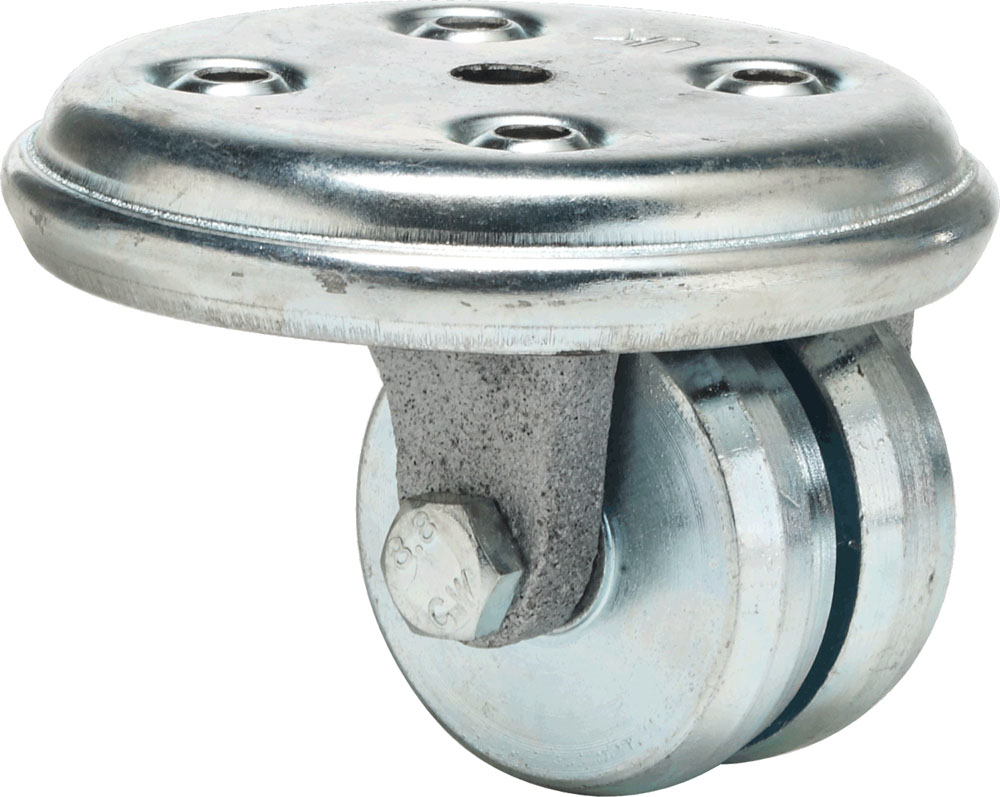

JKCN 0501 1100 (2SL 050 STOL)
JKCN 0501 1100 50 mm, 270 kg
Technical data
| Diameter | 50 mm |
| Wheel width | 2 x 14 mm |
| Height | 64 mm |
| Offset | 25 mm |
| Top plate dimensions | 95 mm |
| Top plate hole diameter | 6.8 mm |
| Dist. between holes | 36 x 36 mm |
| Load capacity | 270 kg |
| Weight | 0.8 kg |
Wheel
- Cast iron wheel with plain bearing
Technical description
- Heavy duty swivel fork of welded and forged
- zinc-coated steel swivel bearing with single
- ball race way

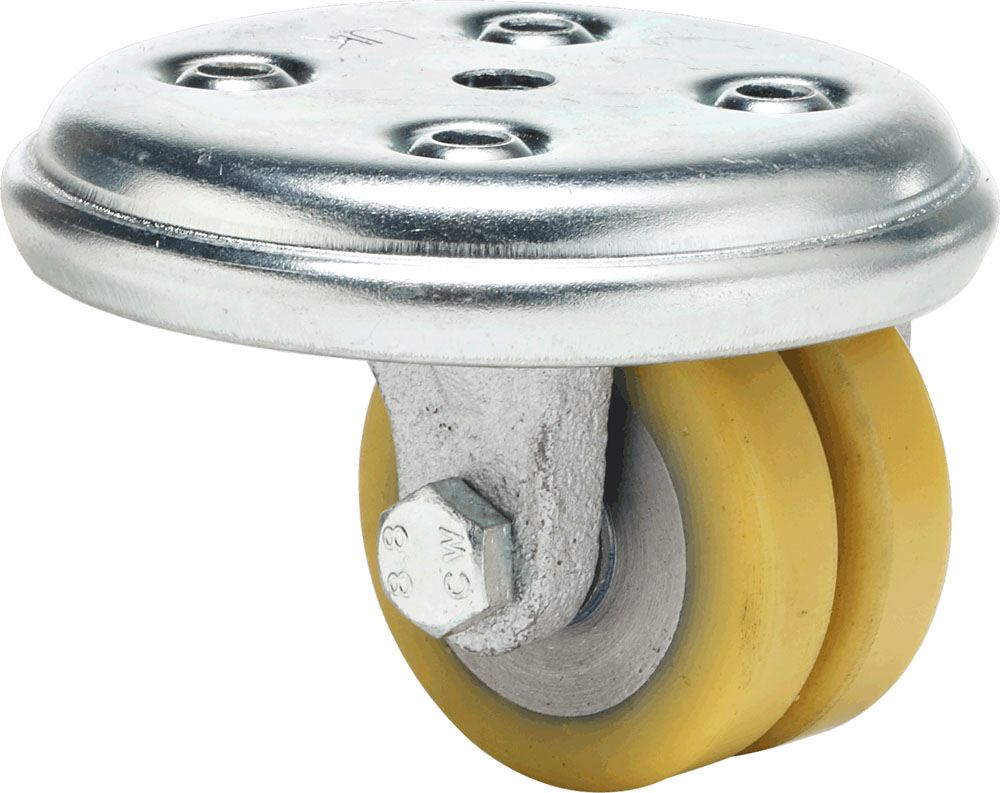

JKCV 0501 1100 (2SL 050 PTOL)
JKCV 0501 1100 50 mm, 160 kg
Technical data
| Diameter | 50 mm |
| Wheel width | 2 x 14 mm |
| Height | 64 mm |
| Offset | 25 mm |
| Top plate dimensions | 95 mm |
| Top plate hole diameter | 6.8 mm |
| Dist. between holes | 36 x 36 mm |
| Load capacity | 160 kg |
| Weight | 0.8 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre
- (Shore A 92) with a plain bearing
Technical description
- Heavy duty swivel fork of welded and forged
- zinc-coated steel swivel bearing with single
- ball race way

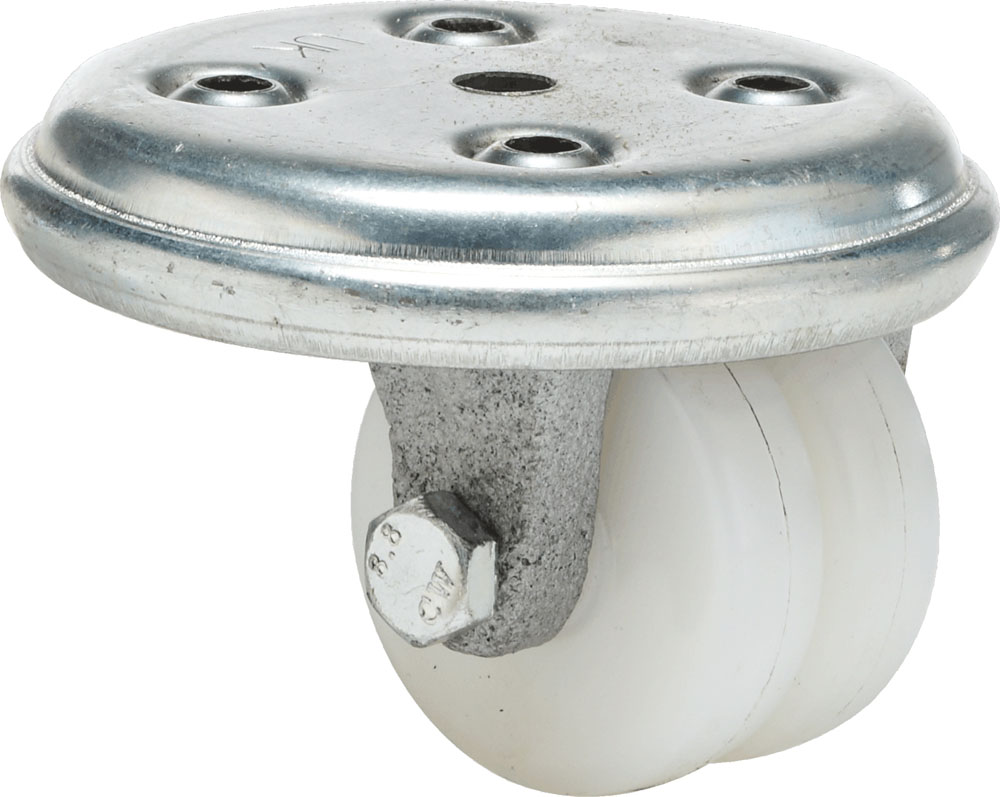

JKPN 0501 1100(2SL 050 NYOL)
JKPN 0501 1100 50 mm, 160 kg
Technical data
| Diameter | 50 mm |
| Wheel width | 2 x 14 mm |
| Height | 64 mm |
| Offset | 25 mm |
| Top plate dimensions | 95 mm |
| Top plate hole diameter | 6.8 mm |
| Dist. between holes | 36 x 36 mm |
| Load capacity | 160 kg |
| Weight | 0.5 kg |
Wheel
- Polyamide wheel with plain bearing
Technical description
- Heavy duty swivel fork of welded and forged
- zinc-coated steel swivel bearing with single
- ball race way

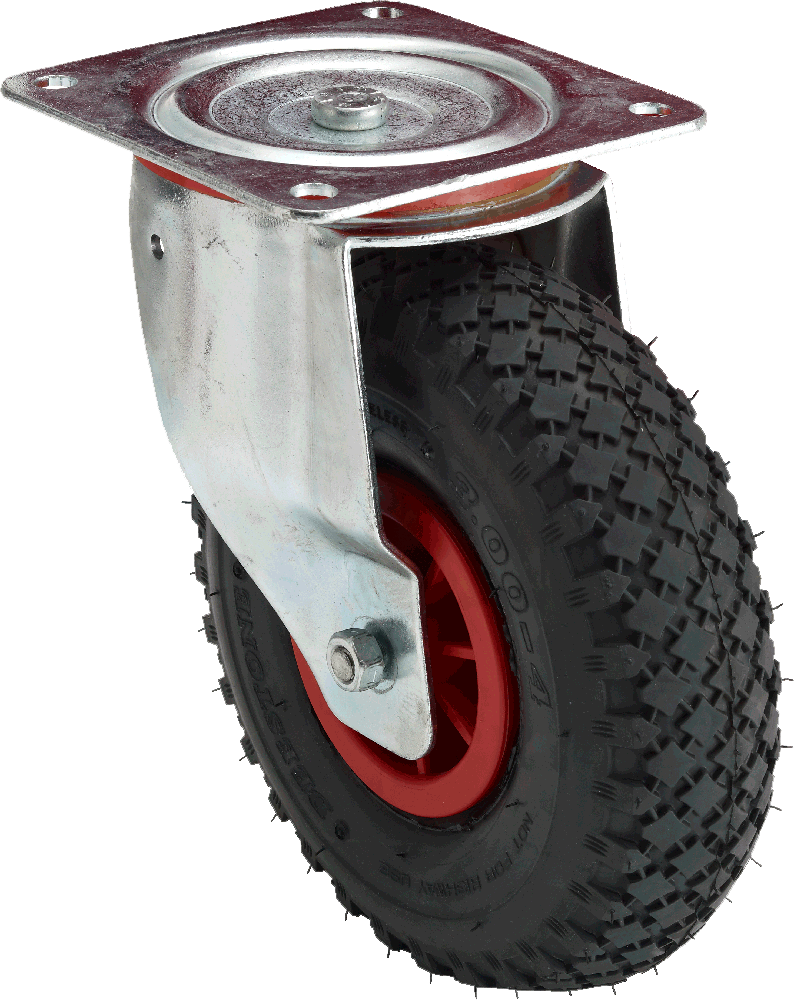

JLPL 3.00-4
JLPL 3.00-4 260 mm, 170 kg
Technical data
| Diameter | 260 mm |
| Wheel width | 85 mm |
| Hub length | 75 mm |
| Height | 307 mm |
| Offset | 85 mm |
| Top plate dimensions | 200 x 160 mm |
| Top plate hole diameter | 14 mm |
| Dist. between holes | 150 x 115 mm |
| Load capacity | 170 kg |
| Weight | 4.3 kg |
Wheel
- Pneumatic wheel with a red plastic core
- black tyre
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race way
- and sealring, operating temperatures -40° to +250°C

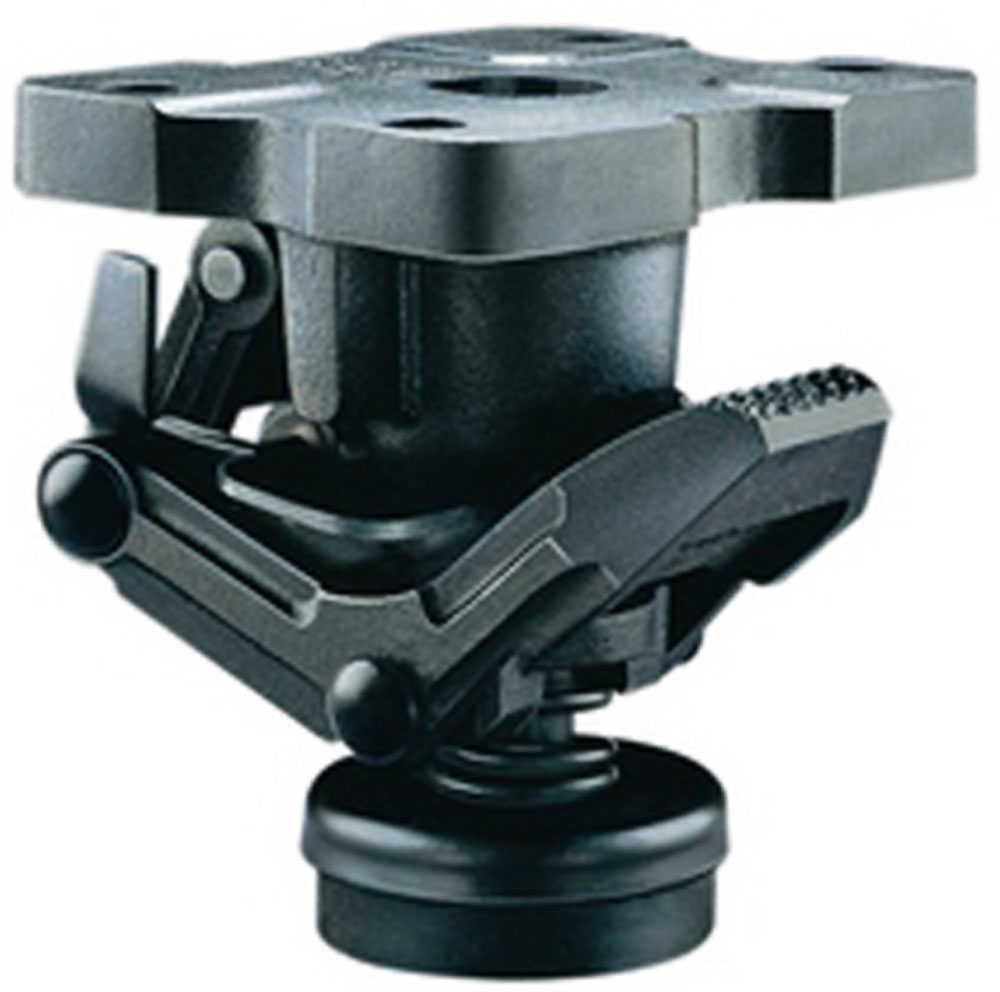

TLCH
Technical data
| Height | 163.5 mm |
| Top plate dimensions | 153 x 114 mm |
| Top plate hole diameter | 14 mm |
| Dist. between holes | 127 x 63.5 mm |
| Weight | 5.2 kg |
Wheel
- Cast iron top fitting floor lock brake, designed to
- bolt at the underside of a trolley at 200 mm above
- the ground surface
TLUS 1
TLUS 1
Technical data
| Height | h 99 H 125 mm |
| Top plate dimensions | 64 x 92 mm |
| Top plate hole diameter | 8 mm |
| Dist. between holes | 45 x 71,78 mm |
| Weight | 1.23 kg |
Technical description
- Zinc-coated top fitting floor lock,
- designed to bolt on the underside of
- a trolley at an overall height = H + 2
- to 6 mm above the ground surface
