BTPF 1005 5000
BTPF 1005 5000 80 mm - 125 mm, 120 kg - 180 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 50 mm |
| Height | 125 mm |
| Offset | 40 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 117 mm |
| Load capacity | 150 kg |
| Weight | 1.32 kg |
Wheel
- Dark grey Polypropyleene wheel with grey rubber tyre
- (Performa, Shore A 65 - 70) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPG 2503 6443
250 mm, 340 kg
Technical data
| Diameter | 250 mm |
| Hub length | 64 mm |
| Height | 290 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Top plate dimensions | 135 x 110 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105x80/75 mm |
| Load capacity | 340 kg |
| Weight | 4.6 kg |
Wheel
- Polyamide wheel with grey rubber tyre
- (Shore A 85) and two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPM 2503 6443
250 mm, 340 kg
Technical data
| Diameter | 250 mm |
| Hub length | 64 mm |
| Height | 290 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Top plate dimensions | 135 x 110 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105x80/75 mm |
| Load capacity | 340 kg |
| Weight | 4.6 kg |
Wheel
- Polyamide wheel with black rubber tyre
- (Shore A 85) and two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity

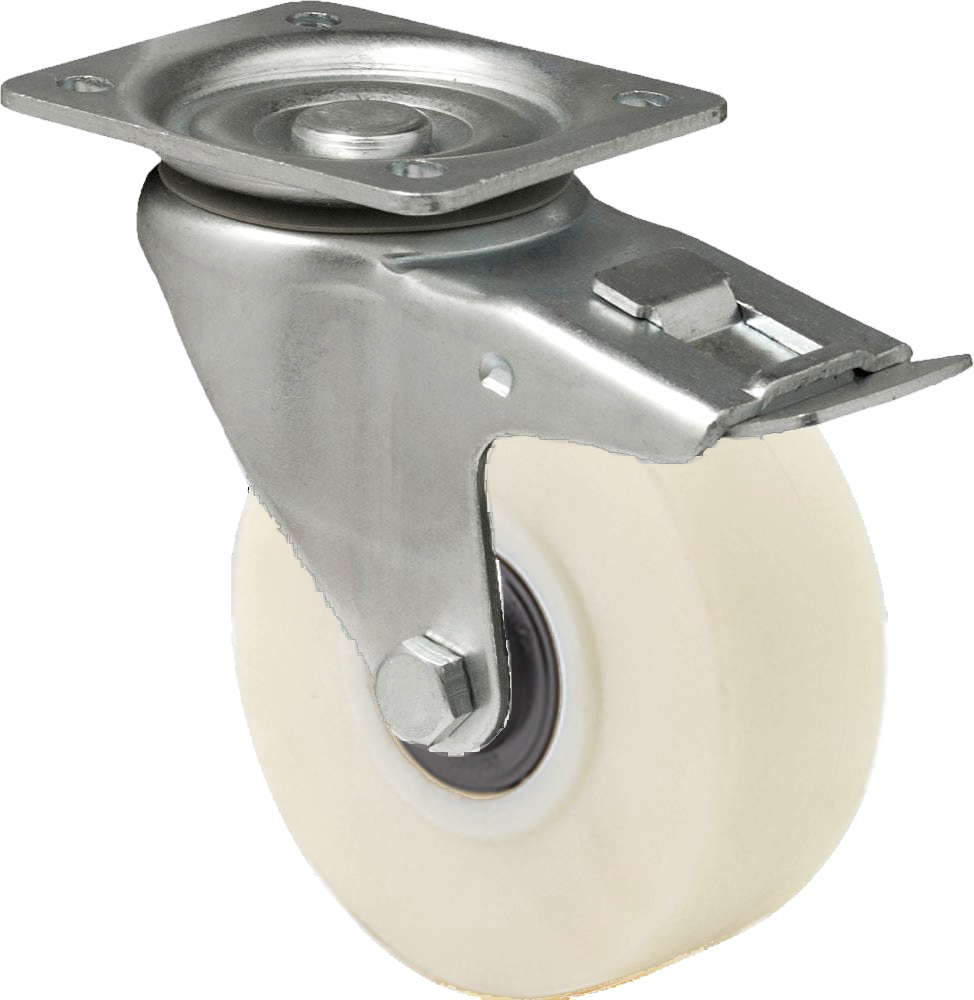

BTPN 0752 6000
75 mm, 400 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 36 mm |
| Hub length | 45 mm |
| Height | 108 mm |
| Offset | 40 mm |
| Top plate dimensions | 105 x 86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 115 mm |
| Load capacity | 400 kg |
| Weight | 1.28 kg |
Wheel
- Polyamide wheel with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPN 1002 2100
BTPN 1002 2100 100 mm - 200 mm, 250 kg - 500 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 48 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1.2 kg |
Wheel
- Polyamide wheel with roller bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPN 1002 2101
BTPN 1002 2101 100 mm - 125 mm, 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 48 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1.4 kg |
Wheel
- Polyamide wheel with roller bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPN 1002 5100
BTPN 1002 5100 80 mm - 125 mm, 150 kg - 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 30 mm |
| Hub length | 48 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 10 mm |
| Top plate dimensions | 105 x 86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1.2 kg |
Wheel
- Polyamide wheel with one sealed deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPN 1005 2000
BTPN 1005 2000 100 mm - 125 mm, 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 48 mm |
| Height | 125 mm |
| Offset | 40 mm |
| Wheel axle diameter | 15 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1 kg |
Wheel
- Polyamide wheel with roller bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPN 1005 2001
BTPN 1005 2001 100 mm - 125 mm, 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 48 mm |
| Height | 125 mm |
| Offset | 40 mm |
| Wheel axle diameter | 15 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1.2 kg |
Wheel
- Polyamide wheel with roller bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPN 1005 5000
BTPN 1005 5000 80 mm - 125 mm, 150 kg - 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 48 mm |
| Height | 125 mm |
| Offset | 40 mm |
| Wheel axle diameter | 10 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1 kg |
Wheel
- Polyamide wheel with one sealed deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
