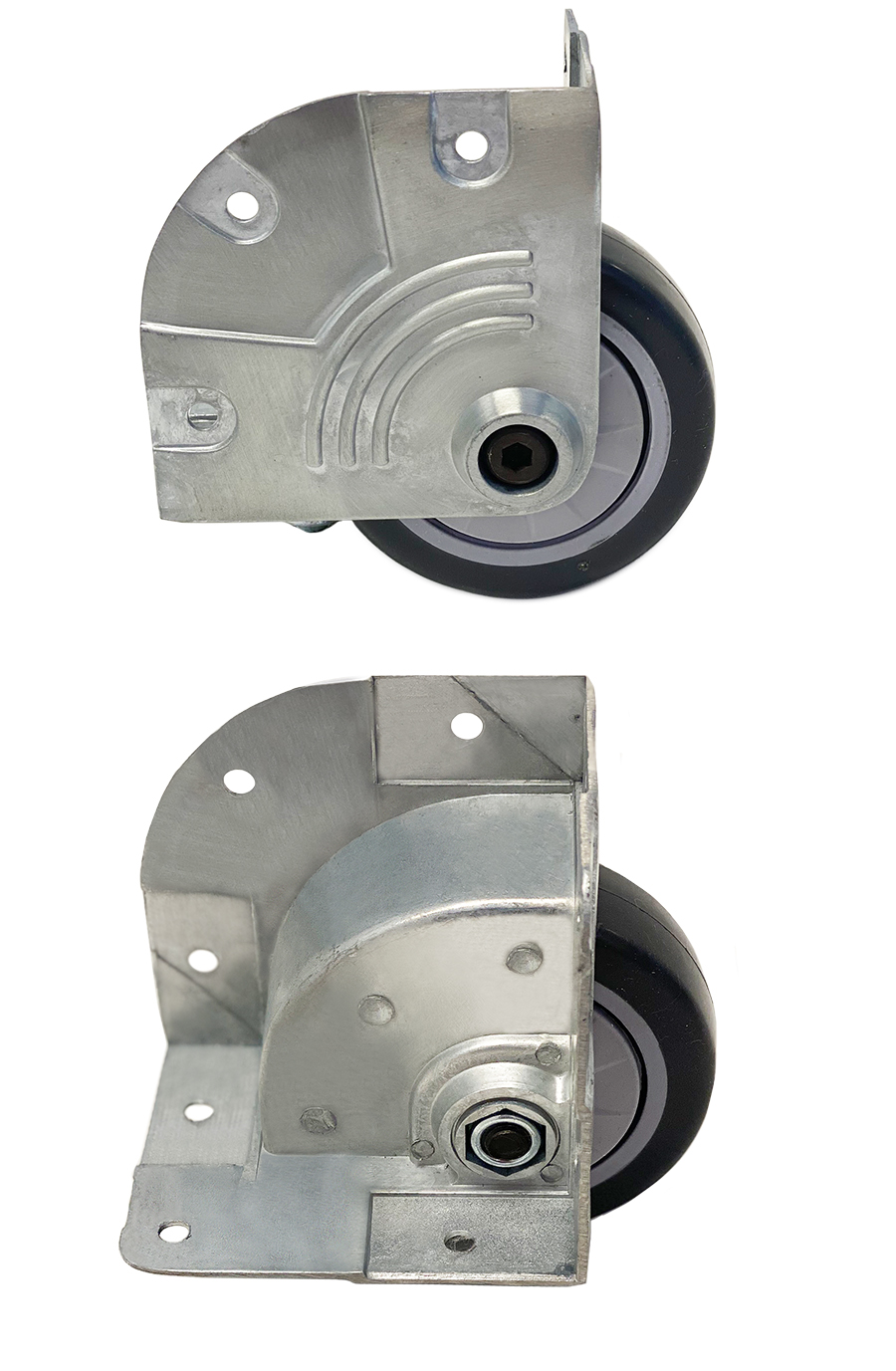

118a 820 799
76 mm, 50 kg
Technical data
| Diameter | 76 mm |
| Tread width | 25 mm |
| Height | 104,4 mm |
| Top plate dimensions | 81,4 x 65,3 mm |
| Top plate hole diameter | 5,2 mm |
| Dist. between holes | 34 x 50 + 40,71 x 40,71 mm |
| Load capacity | 50 kg |
| Weight | 430 g |
Wheel
- TPR wheel (Shore A 80)
Technical description
- case corner castor with die cast aluminium body.

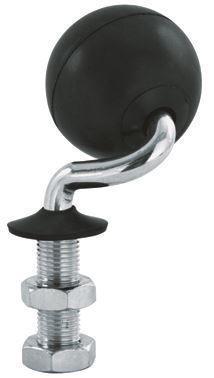

119 050 R (119 050 R)
On request
119 05050 mm, 50 kg
Technical data
| Diameter | 50 mm |
| Height | 110,3 mm |
| Load capacity | 50 kg |
| Weight | 207 g |
Technical description
- ball-swivel castor
- steel wire construction with black rubber spherical wheel (Shore A 70)
- threaded pin M 14x1,5x44 mm, 2 nuts, rubber sealing ring
- measurement top edge ball bearing upper nut 65 mm
Areas of application
- belt grinding machines
- glass cutting tables

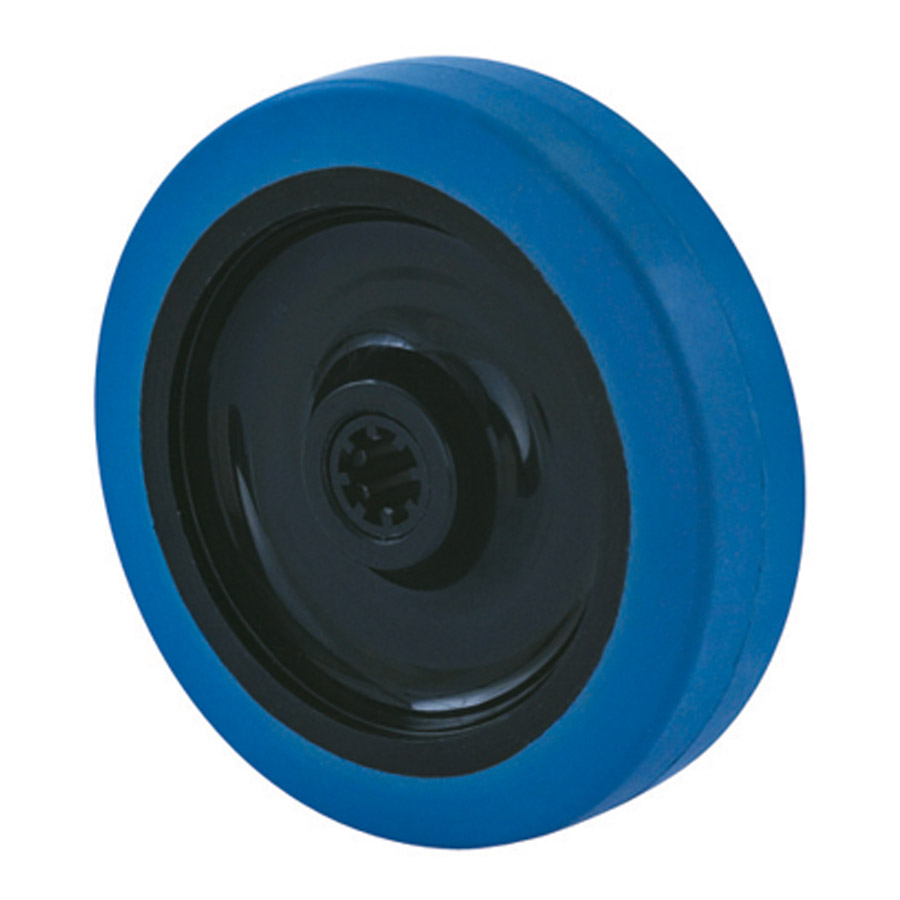

14R100d
14R100d 100 mm - 125 mm, 140 kg
Technical data
| Diameter | 100 mm |
| Tread width | 26 mm |
| Hub length | 35 mm |
| Wheel axle diameter | 12 mm |
| Load capacity | 140 kg |
| Weight | 509 g |
Wheel
- elastic solid rubber tyre blue (Shore A 70)
- vulcanised firmly on plastic wheel centre black
- roller bearing

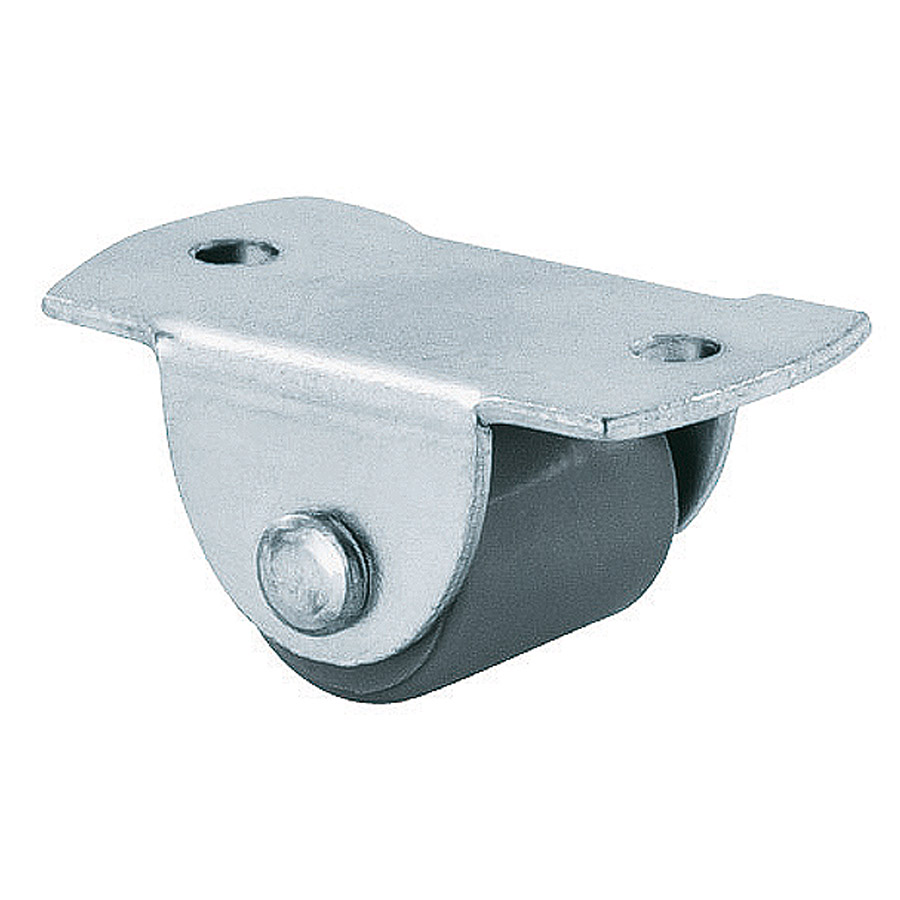

156a 00G016g ZPS
On request
156a 00G016g ZPS 16 mm, 20 kg
Technical data
| Diameter | 16 mm |
| Tread width | 19 mm |
| Height | 19,5 mm |
| Top plate dimensions | 42x23 mm |
| Top plate hole diameter | 4,3 mm |
| Dist. between holes | 28,5 mm |
| Load capacity | 20 kg |
| Weight | 22 g |
Wheel
- polyamide grey
- plain bearing
Technical description
- sheet steel housing
- zinc passivated
Areas of application
- drawers
- small furniture
- sofa beds

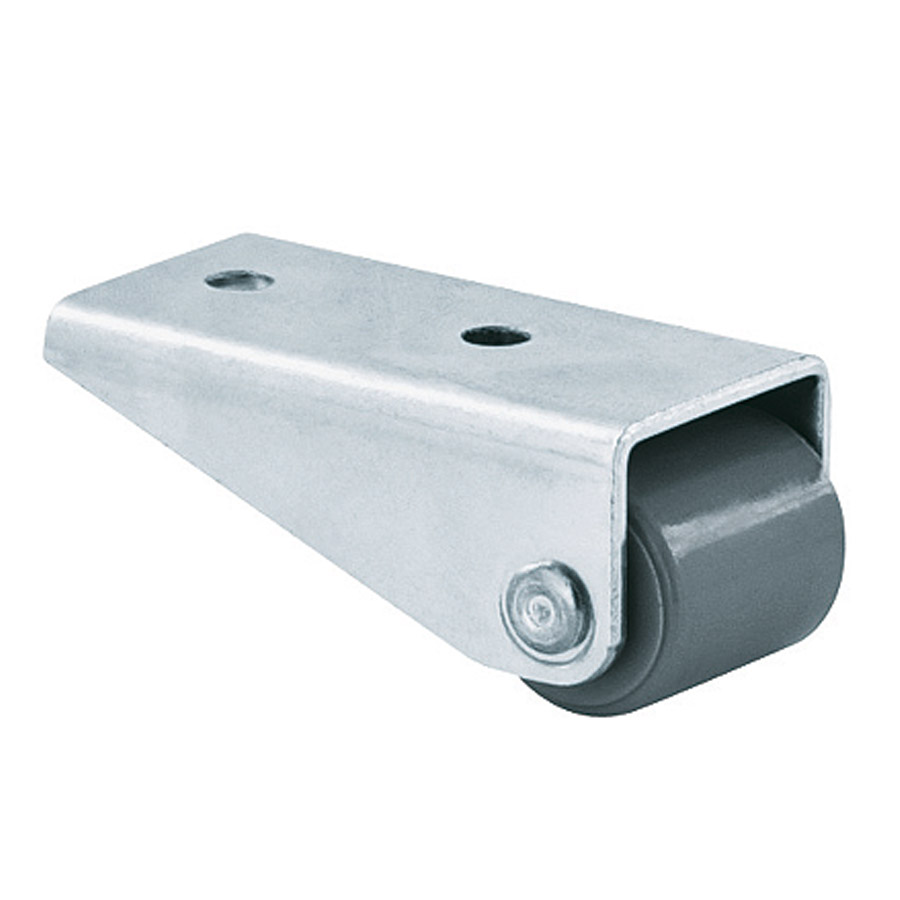

164a 00G016g ZPS
On request
164a 00G016g ZPS 16 mm, 20 kg
Technical data
| Diameter | 16 mm |
| Tread width | 19 mm |
| Height | 20 mm |
| Top plate dimensions | 42x23 mm |
| Top plate hole diameter | 4,3 mm |
| Dist. between holes | 20 mm |
| Load capacity | 20 kg |
| Weight | 30 g |
Wheel
- polyamide grey
- plain bearing
Technical description
- sheet steel housing
- zinc passivated
Areas of application
- drawers
- small furniture
- sofa beds

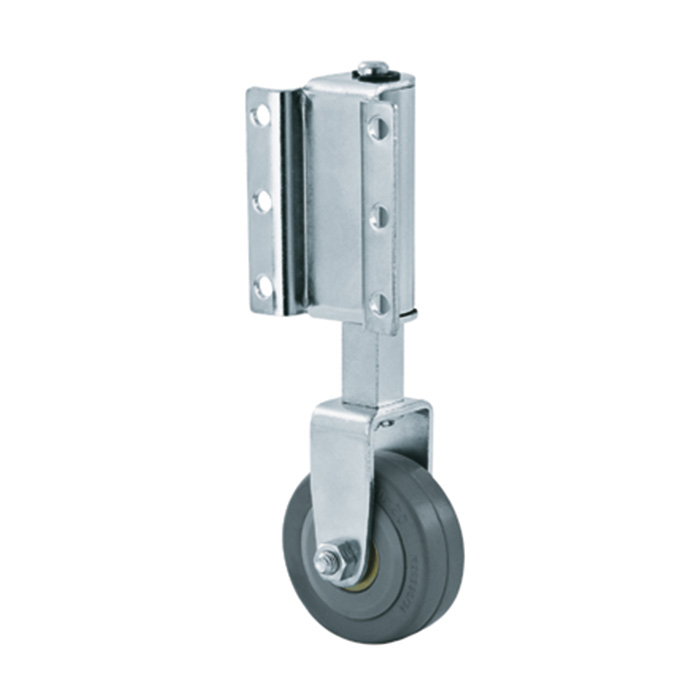

176a 33C050b ZPS
176a 33C050b ZPS 50 mm, 40 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Height | 155 mm |
| Top plate dimensions | 60x50 mm |
| Top plate hole diameter | 5,5 mm |
| Dist. between holes | 22,5x38,8 mm |
| Load capacity | 40 kg |
| Weight | 286 g |
Technical description
- metal housing
- zinc passivated
- with load related locking effect
- screw-on plate can be removed
- turned through 90°
- total spring distance max. 22 mm,
- total spring pressure 17 kg
Areas of application
- ladders

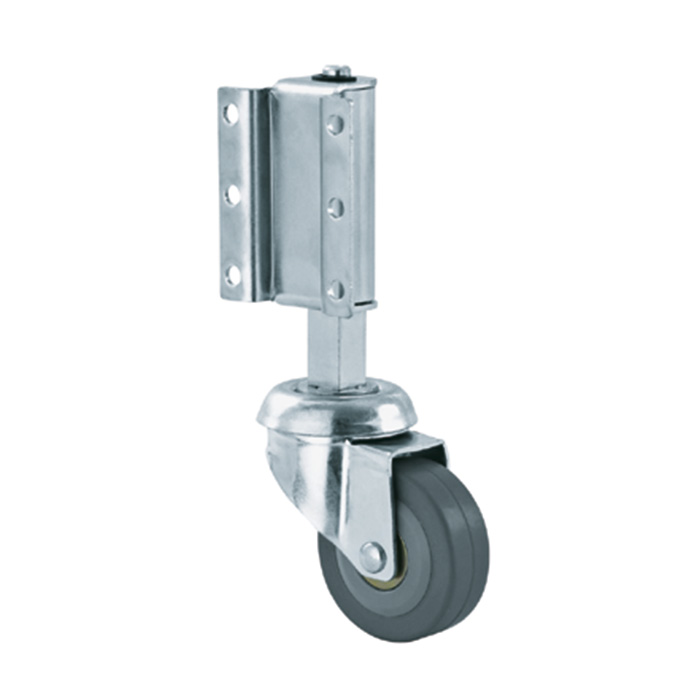

177a 33C050b ZPS
177a 33C050b ZPS 50 mm, 40 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Height | 155 mm |
| Offset | 24 mm |
| Top plate dimensions | 60x50 mm |
| Top plate hole diameter | 5,5 mm |
| Dist. between holes | 22,5x38,8 mm |
| Load capacity | 40 kg |
| Weight | 374 g |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- plastic wheel centre grey
- metal thread guard zinc-passivated (from Ø 75 mm)
- flange bearing
- Attention: wheel in Ø 50 mm riveted!
Technical description
- metal housing
- zinc passivated
- with load related locking effect
- screw-on plate can be removed
- turned through 90°
- total spring distance max. 22 mm,
- total spring pressure 17 kg
Areas of application
- ladders

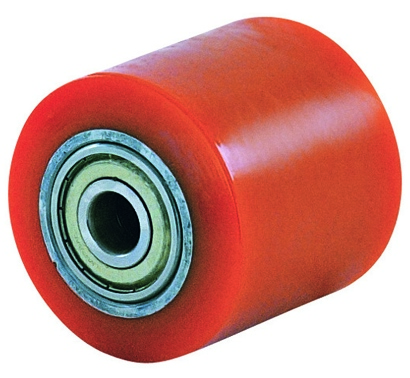

18K085v-85-17
On request
18K085v-85-17 85 mm, 700 kg
Technical data
| Diameter | 85 mm |
| Tread width | 85 mm |
| Hub length | 85 mm |
| Wheel axle diameter | 17 mm |
| Load capacity | 700 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
18K100v-40-15
On request
18K100v-40-15 100 mm - 250 mm, 275 kg - 1800 kg
Technical data
| Diameter | 100 mm |
| Tread width | 40 mm |
| Hub length | 40 mm |
| Wheel axle diameter | 15 mm |
| Load capacity | 275 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing

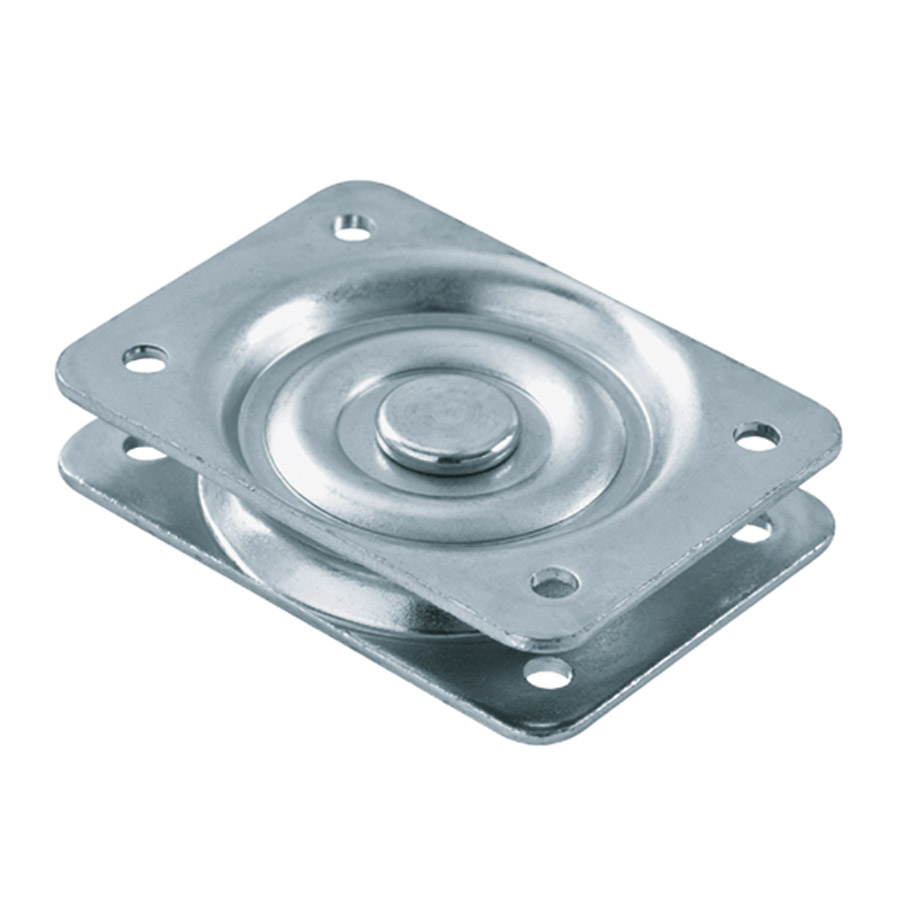

197B
On request
197B 0 mm, 280 kg
Technical data
| Height | 19,5 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 6,5 mm |
| Dist. between holes | 75x45 mm |
| Load capacity | 280 kg |
| Weight | 324 g |
Technical description
- double plate ball bearing
- single-row ball race
- zinc-passivated
Areas of application
- turntables
- game tables
