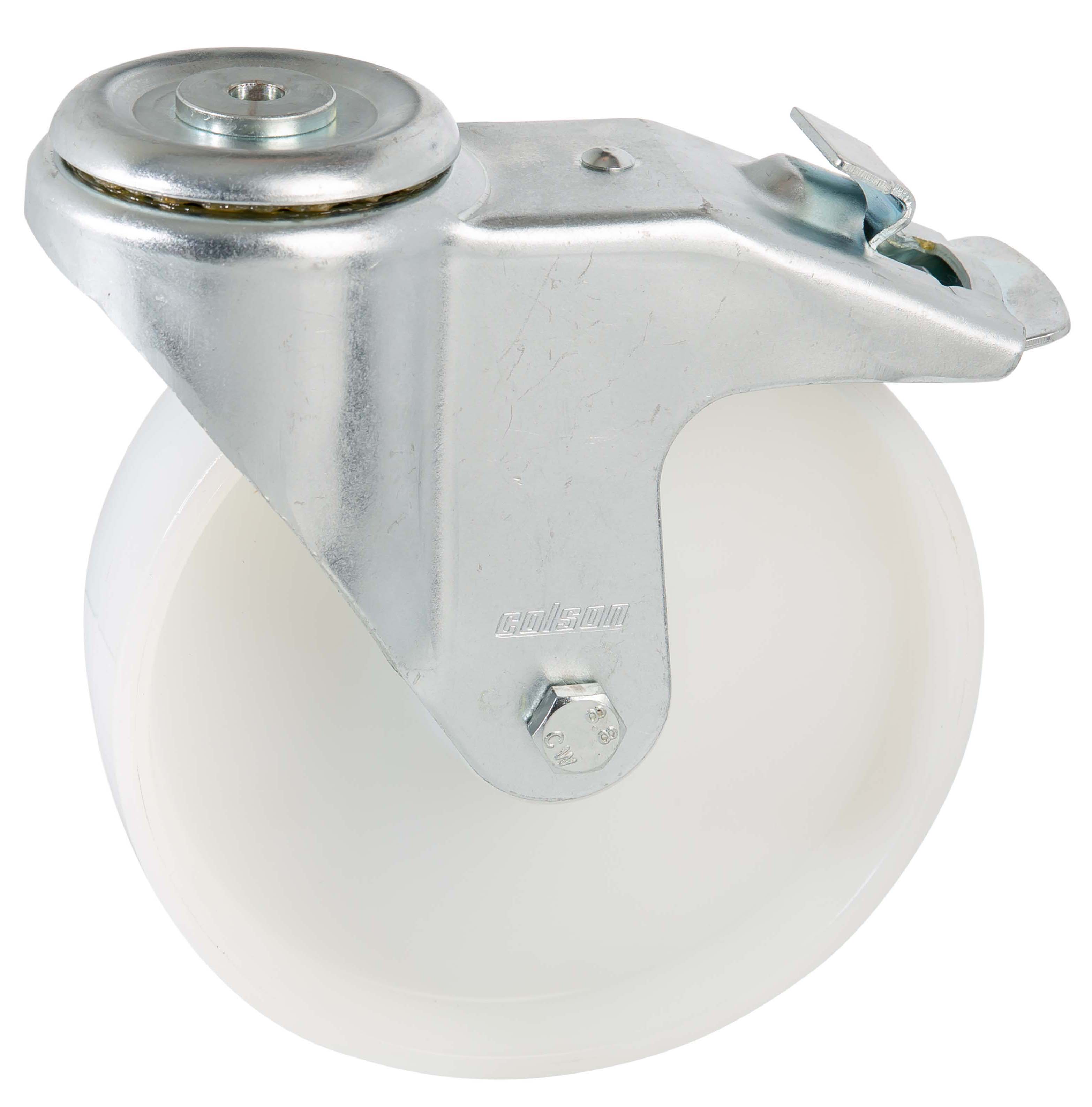

BPPN 2007 2000
80 mm - 200 mm, 150 kg - 350 kg
Technical data
| Diameter | 200 mm |
| Wheel width | 50 mm |
| Hub length | 60 mm |
| Height | 235 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 350 kg |
| Weight | 2.6 kg |
Wheel
- Polyamide wheel with roller bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel,
- swivel bearing with double ball race way and sealring (excluded the bolt hole fixing plate) with a total lock brake
