FSCV 2503 6443
FSCV 2503 6443 80 mm - 250 mm, 210 kg - 1000 kg
Technical data
| Diameter | 250 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 290 mm |
| Offset | 60 mm |
| Wheel axle diameter | 20 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 1000 kg |
| Weight | 7 kg |

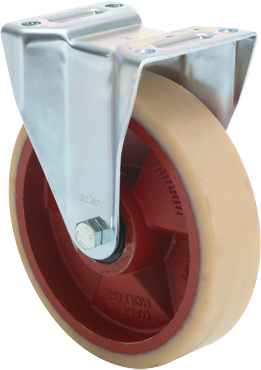

Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
Technical description
- Rigid fork of zinc-coated sheet steel
