367h 32C080b ZPF
367h 32C080b ZPF 80 mm - 200 mm, 80 kg - 110 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 117 mm |
| Offset | 43,5 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 75x45/72x52 mm |
| Load capacity | 80 kg |
| Weight | 961 g |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods

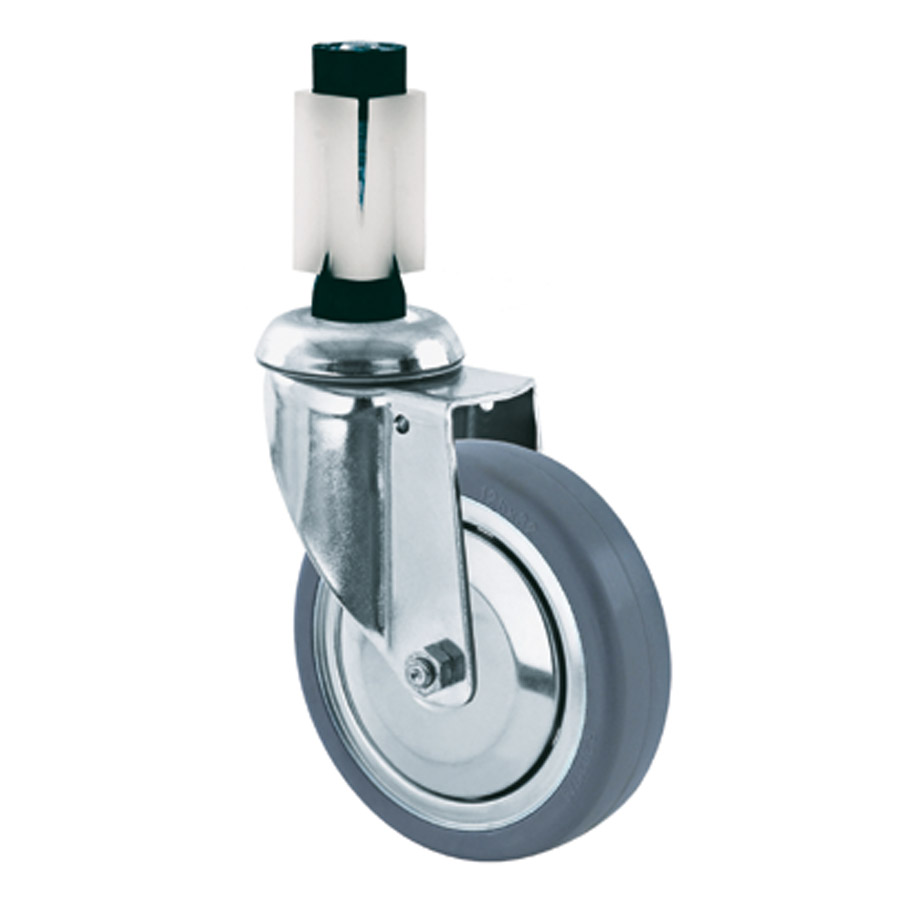

367h 32C080b ZR
367h 32C080b ZR 80 mm - 200 mm, 80 kg - 120 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 111 mm |
| Offset | 43,5 mm |
| Load capacity | 80 kg |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
36K125b
36K125b 125 mm, 100 kg
Technical data
| Diameter | 125 mm |
| Tread width | 33 mm |
| Hub length | 36,5 mm |
| Wheel axle diameter | 8 mm |
| Load capacity | 100 kg |
Wheel
- solid rubber tyre iron-grey RAL 7011 (Shore A 80)
- plastic wheel centre and plastic thread guard silver grey RAL 7001
- precision ball bearing
381a 40K075v KGD
On request
381a 40K075v KGD 75 mm - 125 mm, 75 kg - 110 kg
Technical data
| Diameter | 75 mm |
| Tread width | 59/2x10 mm |
| Height | 95 mm |
| Threaded stem size | M12x25 mm |
| Load capacity | 75 kg |
Technical description
- plastic castor
- wheels have easy rollability
- the design protects axle / bearing areas from hair / water
- total lock models lock both the wheel and swivel
- also available wheel diameter 125 mm with fixing pin K622 (28x45 mm)
Areas of application
- diagnostic equipment
- electronic equipment
- medical equipment
- care beds
- patient lifts
381a 40K075v KPS
On request
381a 40K075v KPS 75 mm - 125 mm, 75 kg - 110 kg
Technical data
| Diameter | 75 mm |
| Tread width | 59/2x10 mm |
| Height | 105 mm |
| Top plate dimensions | 94X64 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 78/72X45 mm |
| Load capacity | 75 kg |
Technical description
- plastic castor
- wheels have easy rollability
- the design protects axle / bearing areas from hair / water
- total lock models lock both the wheel and swivel
- also available wheel diameter 125 mm with fixing pin K622 (28x45 mm)
Areas of application
- diagnostic equipment
- electronic equipment
- medical equipment
- care beds
- patient lifts
381h 40K075v KGD
On request
381h 40K075v KGD 75 mm - 125 mm, 75 kg - 110 kg
Technical data
| Diameter | 75 mm |
| Tread width | 59/2x10 mm |
| Height | 95 mm |
| Threaded stem size | M12x25 mm |
| Load capacity | 75 kg |
Technical description
- plastic castor
- wheels have easy rollability
- the design protects axle / bearing areas from hair / water
- total lock models lock both the wheel and swivel
- also available wheel diameter 125 mm with fixing pin K622 (28x45 mm)
Areas of application
- diagnostic equipment
- electronic equipment
- medical equipment
- care beds
- patient lifts
381h 40K075v KPS
On request
381h 40K075v KPS 75 mm - 125 mm, 75 kg - 110 kg
Technical data
| Diameter | 75 mm |
| Tread width | 59/2x10 mm |
| Height | 105 mm |
| Top plate dimensions | 94X64 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 78/72X45 mm |
| Load capacity | 75 kg |
Technical description
- plastic castor
- wheels have easy rollability
- the design protects axle / bearing areas from hair / water
- total lock models lock both the wheel and swivel
- also available wheel diameter 125 mm with fixing pin K622 (28x45 mm)
Areas of application
- diagnostic equipment
- electronic equipment
- medical equipment
- care beds
- patient lifts
390q 29K080r Z2351
On request
390q 29K080r Z2351 80 mm - 200 mm, 80 kg - 120 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 113 mm |
| Offset | 44 mm |
| Load capacity | 80 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- double ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- device to permit adjustment of the braking effect
- (without removing the castor or wheel)
- also available with other wheel variants
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
390q 29K080r Z985
On request
390q 29K080r Z985 80 mm - 200 mm, 80 kg - 120 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 113 mm |
| Offset | 44 mm |
| Load capacity | 80 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- double ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- device to permit adjustment of the braking effect
- (without removing the castor or wheel)
- also available with other wheel variants
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
390q 29K100r Z2351 C
On request
390q 29K100r Z2351 C 100 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 100 mm |
| Tread width | 30 mm |
| Height | 133 mm |
| Offset | 42 mm |
| Load capacity | 100 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- modern desing with high-quality plastic cover
- double ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- also available with other wheel variants
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
