197D
On request
197D 0 mm, 50 kg
Technical data
| Height | 10,5 mm |
| Top plate dimensions | 57x57 mm |
| Top plate hole diameter | 10,5 mm |
| Dist. between holes | 43x43 mm |
| Load capacity | 50 kg |
Technical description
- double plate ball bearing
- single-row ball race
- zinc-passivated
Areas of application
- turntables
- game tables
198ZPI - 115X85
198ZPI 0 mm, 250 kg - 600 kg
Technical data
| Height | 19 mm |
| Top plate dimensions | 115x85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x55/60 mm |
| Load capacity | 250 kg |
| Weight | 544 g |
Technical description
- double ball race in closed special head
- zinc passivated
Areas of application
- turntables
- game tables
21C KFAD
50 mm - 150 mm, 40 kg - 120 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Hub length | 22 mm |
| Wheel axle diameter | 6 mm |
| Load capacity | 40 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

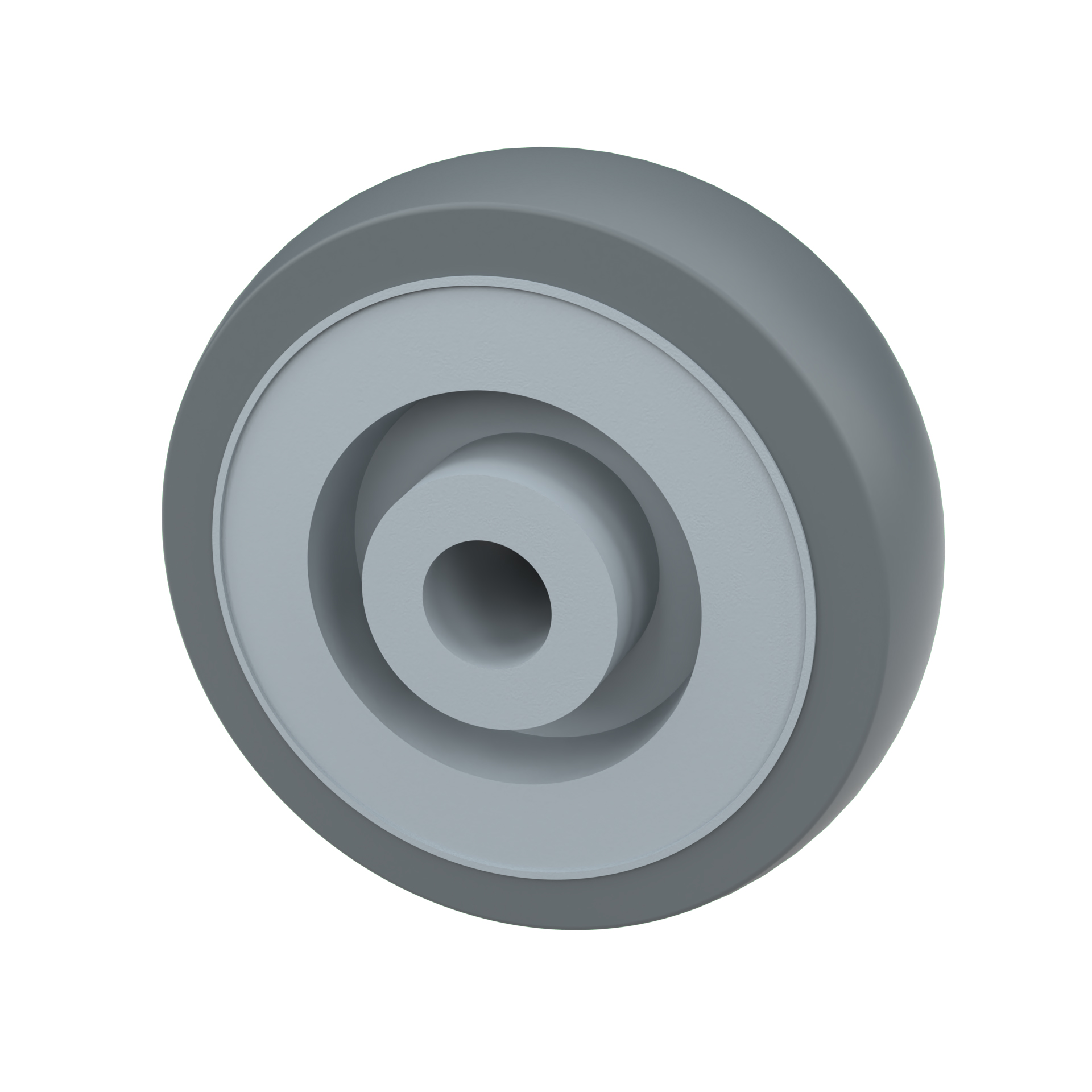

21G
50 mm - 150 mm, 40 kg - 120 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Hub length | 21,5 mm |
| Wheel axle diameter | 8 mm |
| Load capacity | 40 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- plain bearing
- non-oiling
- on request further variants available
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
228a 00G025z ZPS
On request
228a 00G025z ZPS 25 mm - 50 mm, 15 kg - 45 kg
Technical data
| Diameter | 25 mm |
| Tread width | 14 mm |
| Height | 39 mm |
| Offset | 18 mm |
| Top plate dimensions | 47x47 mm |
| Top plate hole diameter | 6,5 mm |
| Dist. between holes | 35x35 mm |
| Load capacity | 15 kg |
| Weight | 71 g |
Wheel
- polypropylene black
- plain bearing
Technical description
- metal housing
- single-row ball race in fork head
- zinc passivated
Areas of application
- audio furniture
- containers for hydroculture
- display stands
- greeting card dispensers
- mobile shelves
- small furniture
- shop fittings
- upholstered furnituresmall furniture
235007016M(Single TECH Combi)
125 mm, 100 kg
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Height | 171 mm |
| Offset | 41 mm |
| Stem size | 28x98 - M8 mm |
| Load capacity | 100 kg |
Wheel
- Wheel centre polypropylene
- Performa rubber tread (70 Sh A)
- Sealed precision ball bearing
- Available also in conductive version
Technical description
- Pressure die cast aluminium body for light weight and high load capacity
- Low rolling friction and force to initiate motion
- Dust and splash-proof
- Integrated switching mechanism with central total and directional lock
- Permanent grease filling in the switching mechanism
- Also available with other wheel variants, colours and stems
- Castor positional mode: 04 (Foot pedal across direction of travel)
Areas of application
- Intensive care beds
- Hospital beds
- Medical equipment
- Operating theatre beds
- Operating tables
- Nursing beds
27R200lZ
27R200lZ 200 mm, 75 kg
Technical data
| Diameter | 200 mm |
| Tread width | 50 mm |
| Hub length | 60 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 75 kg |
| Weight | 721 g |
Wheel
- pneumatic tyre
- sheet steel metal rim
- deep-groove profile
- roller bearing
287a 00G050x KGB1
On request
287a 00G050x KGB1 50 mm - 125 mm, 40 kg - 80 kg
Technical data
| Diameter | 50 mm |
| Tread width | 2x11 mm |
| Height | 56 mm |
| Offset | 17 mm |
| Threaded stem size | M08x15 mm |
| Load capacity | 40 kg |
Wheel
- polyamide black
- plain bearing
Technical description
- housing and wheel made of polyamide (PA)
- attachments zinc-plated
- hard running surface (for soft floors)
Areas of application
- audio furniture
- bedside cabinets
- display stands
- occasional tables
- serving trolleys
- small furniture
287a 00G050x KPS
On request
287a 00G050x KPS 50 mm - 125 mm, 40 kg - 80 kg
Technical data
| Diameter | 50 mm |
| Tread width | 2x11 mm |
| Height | 60 mm |
| Offset | 17 mm |
| Top plate dimensions | 38x38 mm |
| Top plate hole diameter | 5 mm |
| Dist. between holes | 25x25 mm |
| Load capacity | 40 kg |
Wheel
- polyamide black
- plain bearing
Technical description
- housing and wheel made of polyamide (PA)
- attachments zinc-plated
- hard running surface (for soft floors)
Areas of application
- audio furniture
- bedside cabinets
- display stands
- occasional tables
- serving trolleys
- small furniture
287a 00G050x KS02
On request
287a 00G050x KS02 50 mm - 125 mm, 40 kg - 80 kg
Technical data
| Diameter | 50 mm |
| Tread width | 2x11 mm |
| Height | 56 mm |
| Offset | 17 mm |
| Stem size | 11x20 mm |
| Load capacity | 40 kg |
Wheel
- polyamide black
- plain bearing
Technical description
- housing and wheel made of polyamide (PA)
- attachments zinc-plated
- hard running surface (for soft floors)
Areas of application
- audio furniture
- bedside cabinets
- display stands
- occasional tables
- serving trolleys
- small furniture
